ERC / ELASTIC RAIL CLIPS
Strength.
Formed with control.
Spring-steel processing, forming, heat treatment, inspection and lot traceability for the selected clip drawing.
Explore the ERC equipment scope
PRECISION. FROM THE FIRST STEP.
Engineering the
next possibility.
Plant. Machinery. Laboratories. Expertise.
One connected approach to your industrial ambitions.
INDUSTRIAL EQUIPMENT / REFERENCE IMAGE
A MULTIDISCIPLINARY ENGINEERING PARTNER
From an idea.
To an operating plant.
Apex Engineering Solution brings engineering, procurement, consultancy and project management together for manufacturing industries, railways, laboratories and enterprises across India.
Plant & production
Layout, machinery selection, installation and commissioning.
Testing & quality
Laboratory planning, equipment, calibration and technical support.
Approval readiness
Compliance mapping, QAP documentation and assessment preparation.
RAILWAY VENDOR DEVELOPMENT
Two products.
One complete project view.
Dedicated planning for elastic rail clips and high viscous nylon-66 insulating liners. Build the production system, testing capability and quality records around the exact item you intend to supply.
Strength.
HVN / HIGH VISCOUS NYLON-66 LINERS
Precision.
Moulded into every batch.
Resin handling, drying, injection moulding and polymer testing for insulating liner production.
Explore the HVN equipment scope
Equipment images are illustrative. Final machines, capacities and fixtures are selected against the current item specification, STR, drawing and production target.
A CONNECTED MANUFACTURING FLOW
Every stage.
Accounted for.
ERC production
- Material receipt & segregation
- Cutting & profile preparation
- Controlled heating & forming
- Quenching & tempering
- Inspection, release & packing
HVN production
- Resin qualification & storage
- Drying & moisture verification
- Injection moulding & identification
- Visual, dimensional & laboratory tests
- Batch release & dispatch
PLANT, MACHINERY & LABORATORY CATALOGUE
The details that
make a plant work.
A practical procurement and readiness scope covering production equipment, test facilities, utilities and quality infrastructure.
No equipment matches. Clear the search or select another product line.
Planning scope, tailored to your item.
This catalogue combines specification-linked test capabilities with engineering recommendations. It is not a certified mandatory equipment schedule. Confirm in-house requirements, permitted external laboratory arrangements, machine capacities and acceptance limits against the latest controlled RDSO documents before procurement.
LABORATORY & QUALITY SYSTEMS
Measure precisely.
Decide confidently.
Build test capability around the product, the specimen and the prescribed method. Equipment selection includes fixtures, calibration, environmental conditions, operator training and reporting.
- ERC: hardness, metallography, toe load, dimensional fit, crack detection and drawing-specific performance tests.
- HVN: thermal, density, ash, hardness, tensile, flexural, viscosity and electrical-insulation test capability.
- Both: traceable calibration, sample identification, controlled records and inspection readiness.

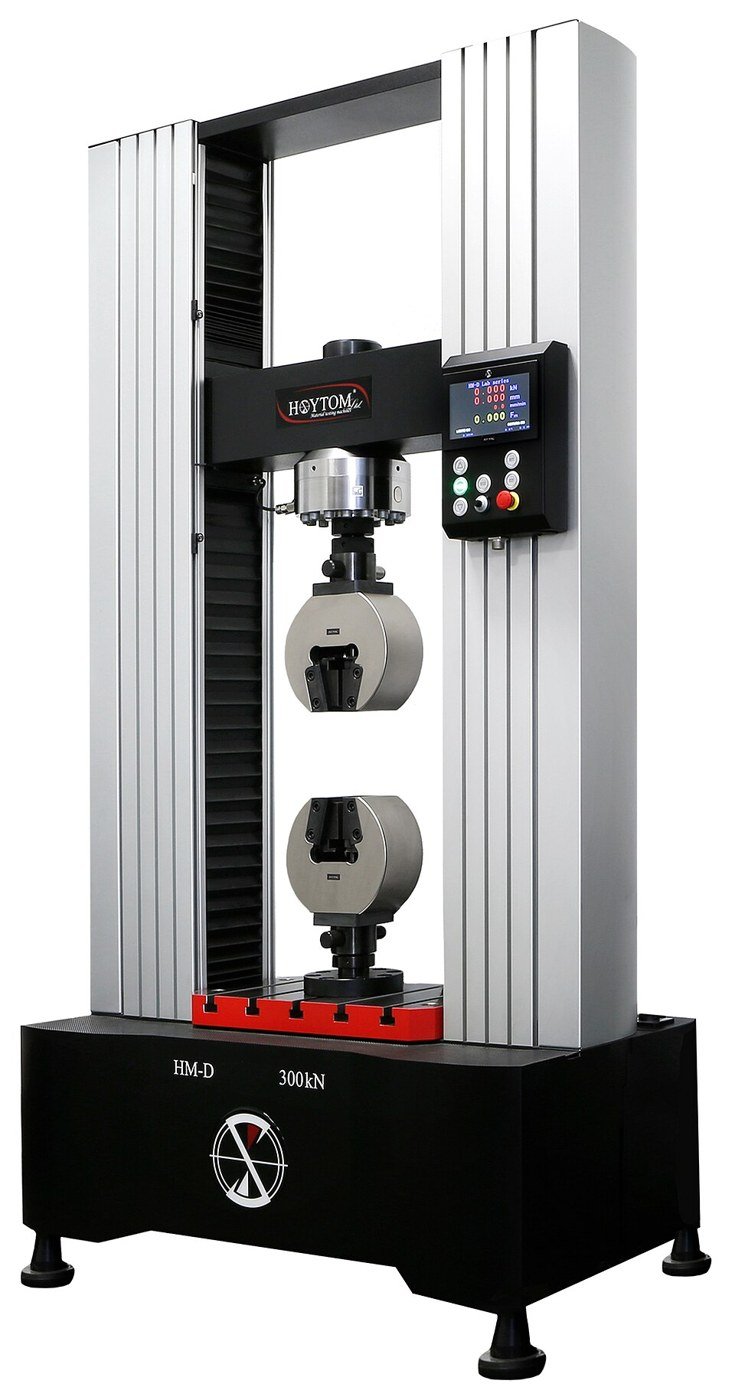

Universal testing equipment shown for reference; product-specific grips and fixtures are selected separately.
MATERIAL-SPECIFIC ENGINEERING
HVN and GFN.
Keep the requirements distinct.
HVN-66 liners
High viscous nylon-66 requires its own raw-material qualification and test route. The reviewed IRS T-44-2023 reference specifies testing on as-moulded HVN liners.
GFN-66 liners
Glass-filled nylon has a different composition and conditioning regime. GFN water-conditioning and absorption requirements should not be transferred into the HVN scope.
RDSO VENDOR APPROVAL SUPPORT
A clear pathway.
Prepared at every stage.
Apex supports the preparation and execution of the vendor-development journey. RDSO and the competent railway authorities retain the assessment and approval decision.
Define the item
Identify the product, drawing and alteration. Obtain the current specification, STR and applicable UVAM item requirements.
Establish readiness
Review manufacturing eligibility, works infrastructure, ISO 9001 scope, personnel and equipment gaps.
Prepare the dossier
Assemble legal and works documents, declarations, machinery registers, calibration records, QAP and supporting evidence.
Submit through UVAM
Use the prescribed online application route, supporting documents and applicable charges. Follow current portal instructions.
Address scrutiny & CCA
Respond to observations and demonstrate installed capacity, manufacturing controls, testing and traceability during assessment.
Qualify gauges & samples
Complete item-specific gauge checks, trial manufacture and witnessed or prescribed sample testing as directed.
Meet listing conditions
Follow the applicable developmental or approved-vendor route and any prototype clearance or field-performance conditions.
Maintain & progress
Meet inspection and performance obligations. Maintain audit readiness and apply for upgradation or status changes when eligible.
ERC approval workstream
Confirm the exact clip variant; map the current IRS T-31 and TDG 0044 requirements; qualify raw-material sourcing, heat-treatment controls, drawing-specific gauges and clip performance. Prepare trial-lot records and sample testing for the applicable route. Initial process/product inspection and bulk-production clearance follow the current item instructions and contract.
HVN approval workstream
Map the current IRS T-44 and TDG 0005 requirements to the selected liner drawing. Establish resin qualification, drying, mould and cavity identification, process records, dimensional gauges and polymer test arrangements. Keep raw-material, type/specimen and finished-liner test evidence separate; follow prescribed sample submission and assessment instructions.
Documentation & assessment checklist
- Entity, ownership, works-address and authorized-signatory documents.
- Factory layout, machinery register, invoices and installation evidence.
- ISO 9001 certificate with appropriate manufacturing scope and works address.
- QAP: incoming, process and final inspection; sampling; release and rejection control.
- Instrument register, calibration certificates, reference standards and due dates.
- Personnel qualifications, training and assigned quality responsibilities.
- Raw-material certificates, batch/heat traceability and consumption records.
- Internal tests, gauge records, trial-production and corrective-action evidence.
- Applicable undertakings, online forms, fees and current item-specific annexures.
Registration, e-tendering & approval are distinct
The reviewed application directive QO-D-8.1-5 v2.6 (23 July 2025) states that furnishing digital-signature details is optional at fresh registration and IREPS registration is not required for fresh registration. Digital-signature/IREPS arrangements for e-tender participation are separate. Use the current controlled directive and portal requirements for your application.
Read the official application directiveThe sequence can overlap or vary by item. Fees, timelines, sample quantities and upgradation criteria are governed by current official requirements; approval is not guaranteed by consultancy.
CONSULTANCY THAT CONNECTS THE PROJECT
Expertise beyond
the equipment.
Feasibility & factory setup
Gap assessment, production targets, layout, utility planning and project execution support.
Machinery & procurement
Technical specifications, supplier evaluation, equipment selection and procurement coordination.
Laboratory & quality systems
Test-method mapping, fixture selection, calibration, quality documentation and laboratory coordination.
Vendor approval readiness
RDSO requirement mapping, QAP preparation, application documentation and CCA preparation support.
Commissioning & workforce
Installation, trial-production support, technical training and skilled manpower deployment.
Audits & improvement
Corrective-action support, maintenance, process optimization, tender and compliance documentation.
EQUIPMENT IN FOCUS
Real machines.
Clear possibilities.
Reference photographs illustrate equipment families, not Apex facilities, supplied models or RDSO approval of the equipment shown. Image credits and licences.
THE COMPLETE APEX SCOPE
Engineering.
In every dimension.
Explore all 11 service areas from our company profile, including industrial equipment, laboratories, railway products, polymers, IT and digital solutions.
11 service areas
No matching services. Try another term.
ACROSS INDUSTRY. ACROSS INDIA.
Built for the organizations
building what comes next.
ManufacturingRailwaysGovernmentResearchEducationLaboratoriesAutomotiveEnterprises
Our mission
Reliable, innovative and cost-effective engineering, industrial, laboratory, IT and consultancy solutions, grounded in quality, integrity and customer satisfaction.
Our vision
To be a leading industrial technology and engineering solutions provider recognized for technical excellence, innovation and customer-centric services in India and international markets.
TECHNICAL REFERENCES
Start with the source.
Research reviewed on 3 October 2026. Procurement and approval must use the latest controlled documents and the selected tender’s amendments.
IREPS / UVAM — live item requirements, vendor directory and applicationsOfficial portalRDSO Track Design — specifications, STRs and policyCurrent documentsQO-D-8.1-5 v2.6 — application for vendor registration23 July 2025QO-D-8.1-6 v6.1 — vendor application processing18 March 2025IRS T-44-2023 — GFN & HVN liner specificationReviewed reference; verify superseding revisionsERC manufacturer reference — production and testing facilitiesIndustry example; not an Apex affiliation
Older ERC teaching notes and draft specifications have not been used as current acceptance schedules. Detailed pass/fail limits and compulsory machine capacities are finalized only after current controlled specifications and STRs are obtained.
Photography credits & licences

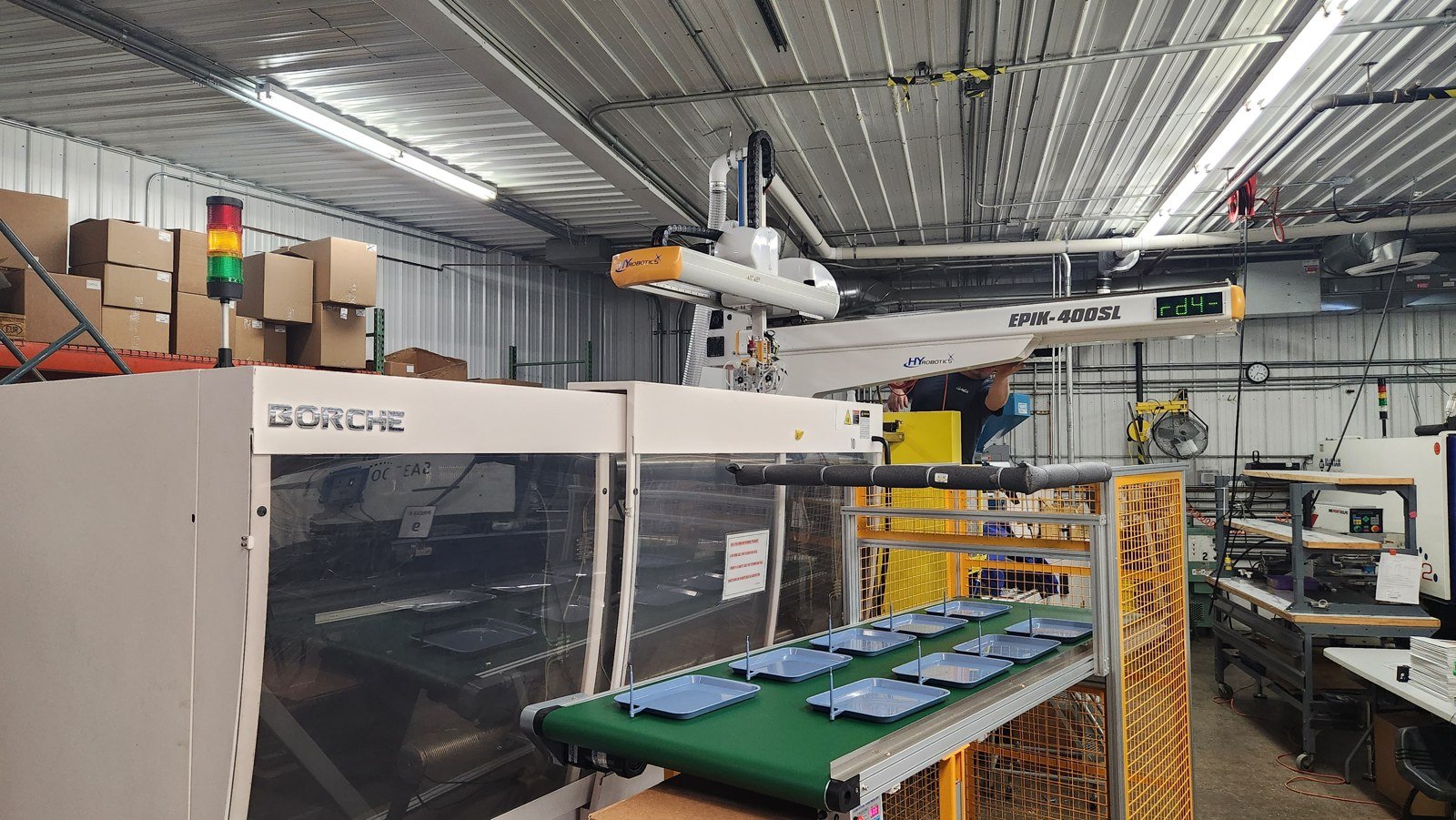

- Injection Molding Machine with a robot arm — The robotic engineer1, Wikimedia Commons, CC BY-SA 4.0.

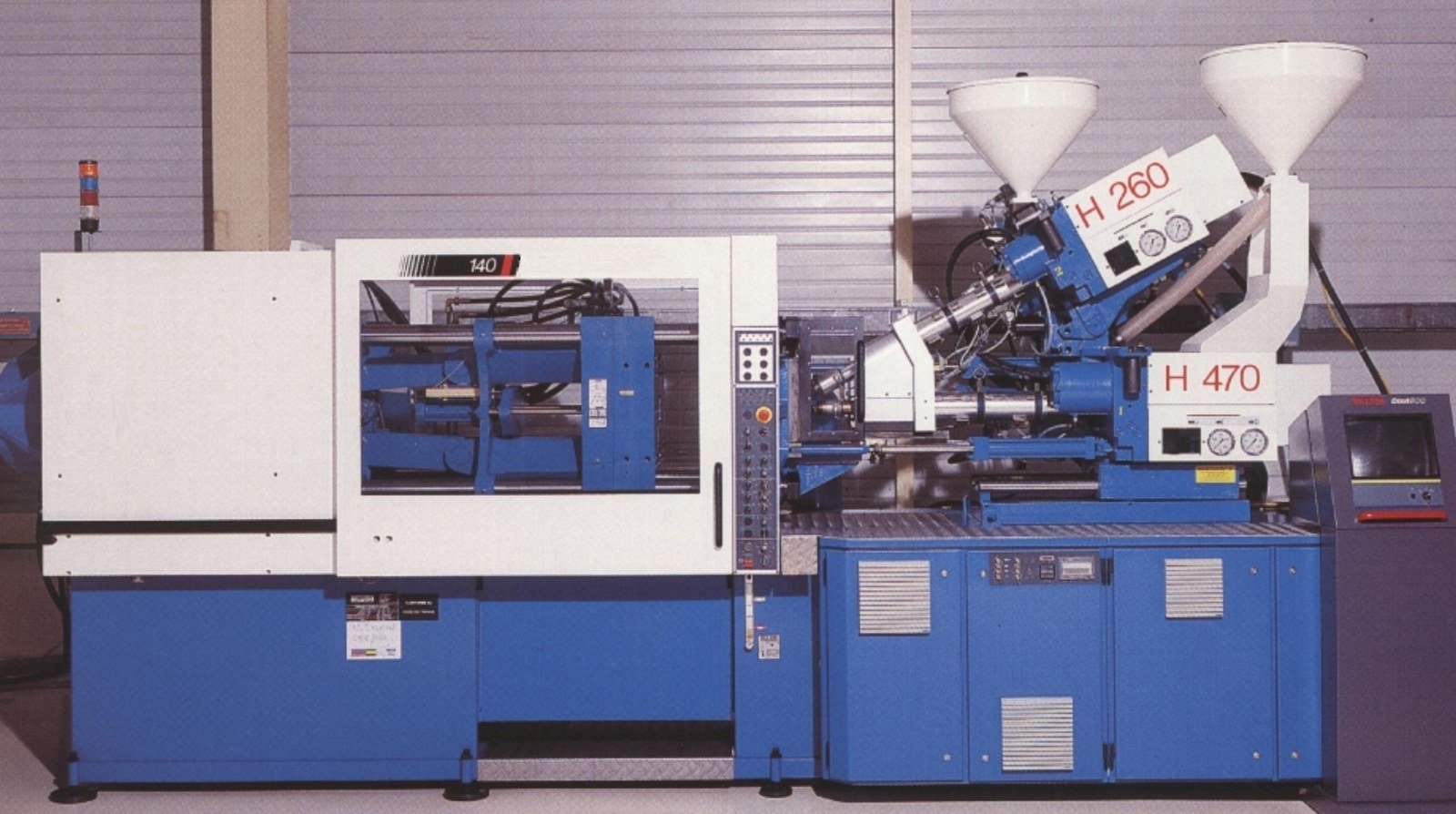

- Bi material molding machine — Cjp24, Wikimedia Commons, CC BY-SA 3.0.

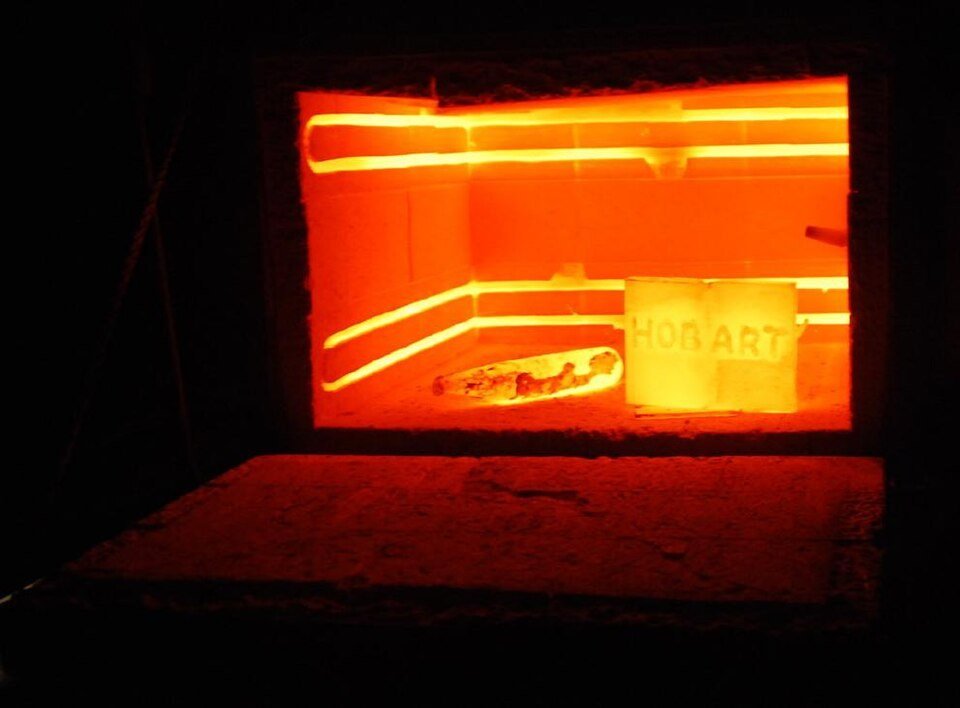

- Heat-Treating-Furnace — Ichudov, Wikimedia Commons, CC BY-SA 3.0.
- Universal testing machine — Ganitz, Wikimedia Commons, CC BY-SA 4.0.

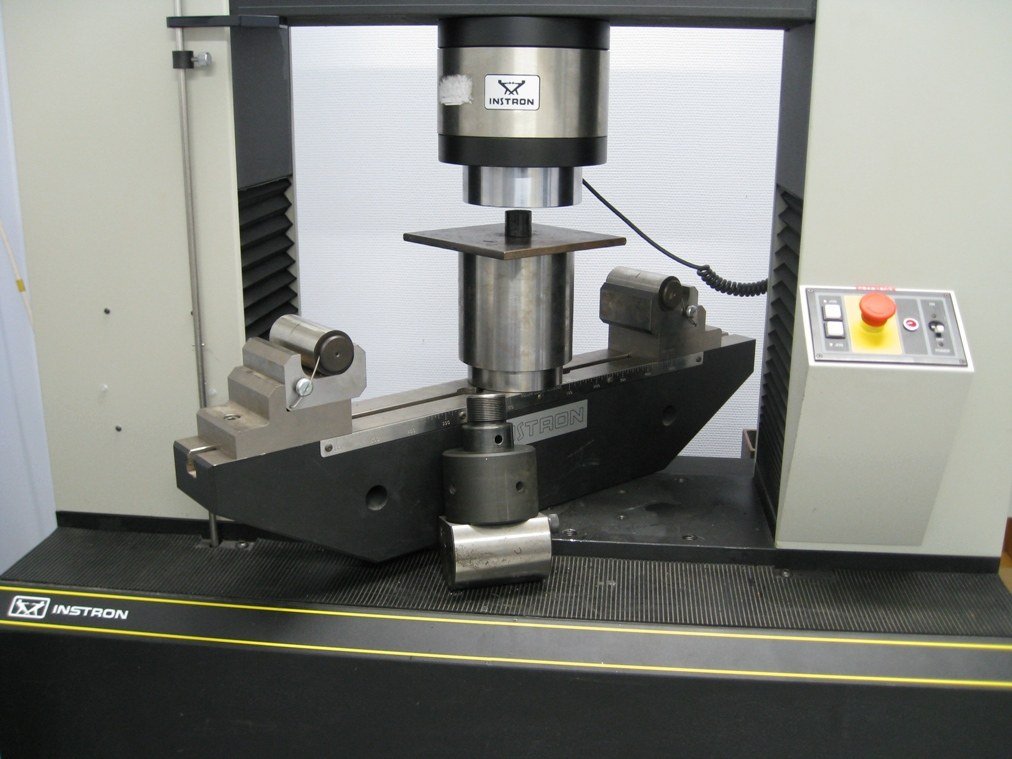

- Compression test-Universal testing machine — Cjp24, Wikimedia Commons, CC BY-SA 3.0.
